MAX6964 17-Output LED Driver/GPO

The MAX6964 I2C-compatible serial interfaced peripheral provides microprocessors with 17 output ports. Each output is an open-drain current-sinking output rated at 50mA and 7V. The outputs are capable of driving LEDs, or providing logic outputs with external resistive pullup up to 7V. Eight-bit PWM.

MAX6964 Features

* 400kbps, 2-Wire Serial Interface, 5.5V Tolerant

* 2V to 3.6V Operation

* Overall 8-Bit PWM LED Intensity Control Global 16-Step Intensity Control Plus Individual 16-Step Intensity Controls

* Two-Phase LED Blinking

* High Port Output Current

* Each Port

MAX6964_MaximIntegratedProducts.pdf

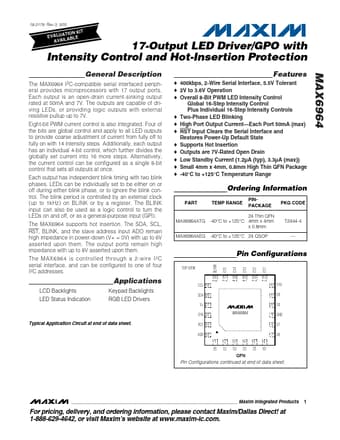

MAX6964 Datasheet Preview — Preview of MAX6964 PDF
