MAX8550 Datasheet - Maxim Integrated Products

Integrated DDR Power-Supply Solutions

MAX8550 Features

* make the MAX8550/MAX8551 ideally suited for DDR memory applications in desktops, notebooks, and graphic cards. The PWM controller in the MAX8550/MAX8551 utilizes Maxim’s proprietary Quick-PWM™ architecture with programmable switching frequencies of up to 600kHz. This control scheme handles wide inpu

MAX8550 General Description

The MAX8550/MAX8551 integrate a synchronous-buck PWM controller to generate VDDQ, a sourcing and sinking LDO linear regulator to generate VTT, and a 10mA reference output buffer to generate VTTR. The buck controller drives two external N-channel MOSFETs to generate output voltages down to 0.7V from .

MAX8550 Datasheet (570.90 KB)

MAX8550 Datasheet Preview — Preview of MAX8550 PDF

Datasheet Details

Part number:

MAX8550

Manufacturer:

Maxim Integrated ↗ Products

File Size:

570.90 KB

Description:

Integrated ddr power-supply solutions.

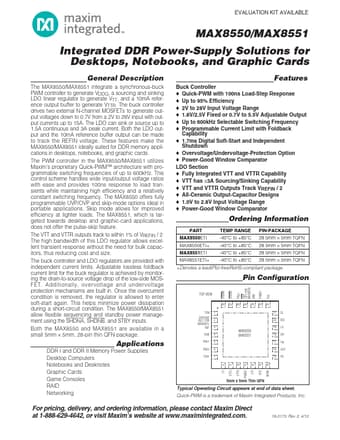

www.DataSheet.co.kr 19-3173; Rev 2; 9/04 KIT ATION EVALU E L B A IL AVA Integrated DDR Power-Supply Solutions for Desktops, Notebooks, and Graphic .
