MAX9311 - (MAX9311 / MAX9313) 1:10 Differential LVPECL/LVECL/HSTL Clock and Data Drivers

Datasheet Summary

Description

The MAX9311/MAX9313 are low-skew, 1-to-10 differential drivers designed for clock and data distribution.

These devices allow selection between two inputs.

The selected input is reproduced at 10 differential outputs.

Features

  • an on-chip VBB reference output of 1.425V below the positive supply voltage. The MAX9313 offers an on-chip V BB reference output of 1.32V below the positive supply voltage. Both devices are offered in space-saving, 32-pin 5mm ✕ 5mm TQFP, 5mm x 5mm QFN, and industry-standard 32-pin 7mm x 7mm LQFP packages. Features o +2.25V to +3.8V Differential HSTL/LVPECL Operation o -2.25V to -3.8V LVECL Operation o 30ps (typ) Part-to-Part Skew o 12ps (typ) Output-to-Output Skew o 312ps (typ) Propagation Dela.

📥 Download Datasheet

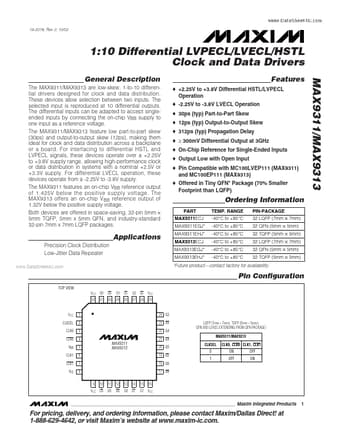

Datasheet preview – MAX9311

Datasheet Details

Part number MAX9311
Manufacturer Maxim Integrated Products
File Size 408.97 KB
Description (MAX9311 / MAX9313) 1:10 Differential LVPECL/LVECL/HSTL Clock and Data Drivers
Datasheet download datasheet MAX9311 Datasheet
Additional preview pages of the MAX9311 datasheet.

📁 Similar Datasheet

  • MAX931 - Ultra Low-Power / Low-Cost Comparators (Maxim)
  • MAX9316 - 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Driver (Maxim)
  • MAX9316A - 1:5 Differential LVPECL/LVECL/ HSTL Clock and Data Driver (Maxim)
  • MAX9317 - Dual 1:5 Differential Clock Drivers (Maxim)
  • MAX932 - Ultra Low-Power / Low-Cost Comparators (Maxim)
  • MAX9320B - 1:2 Differential PECL/ECL/LVPECL/LVECL Clock and Data Driver (Maxim)
  • MAX9321 - Differential LVPECL/LVECL/HSTL Receiver/Drivers (Maxim)
  • MAX9321A - Differential LVPECL/LVECL/HSTL Receiver/Drivers (Maxim Integrated)
  • MAX9321B - Differential PECL/ECL/LVPECL/LVECL Receiver/Driver (Maxim)
  • MAX933 - Ultra Low-Power / Low-Cost Comparators (Maxim)
Other Datasheets by Maxim Integrated Products
  • MAX9310A - 1:5 Clock Driver
  • MAX9312 - (MAX9312 / MAX9314) Dual 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Drivers
  • MAX9313 - (MAX9311 / MAX9313) 1:10 Differential LVPECL/LVECL/HSTL Clock and Data Drivers
  • MAX9314 - (MAX9312 / MAX9314) Dual 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Drivers
  • MAX9315 - 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Driver
  • MAX9317A - Dual 1:5 Differential Clock Drivers with LVPECL Inputs and LVDS Outputs
  • MAX9317B - Dual 1:5 Differential Clock Drivers with LVPECL Inputs and LVDS Outputs
  • MAX9317C - Dual 1:5 Differential Clock Drivers with LVPECL Inputs and LVDS Outputs

Full PDF Text Transcription

Click to expand full text
19-2078; Rev 2; 10/02 1:10 Differential LVPECL/LVECL/HSTL Clock and Data Drivers General Description The MAX9311/MAX9313 are low-skew, 1-to-10 differential drivers designed for clock and data distribution. These devices allow selection between two inputs. The selected input is reproduced at 10 differential outputs. The differential inputs can be adapted to accept singleended inputs by connecting the on-chip VBB supply to one input as a reference voltage. The MAX9311/MAX9313 feature low part-to-part skew (30ps) and output-to-output skew (12ps), making them ideal for clock and data distribution across a backplane or a board. For interfacing to differential HSTL and LVPECL signals, these devices operate over a +2.25V to +3.
