MAX9317A - Dual 1:5 Differential Clock Drivers with LVPECL Inputs and LVDS Outputs

This page provides the datasheet information for the MAX9317A, a member of the MAX9317 Dual 1:5 Differential Clock Drivers with LVPECL Inputs and LVDS Outputs family.

Datasheet Summary

Description

The MAX9317/MAX9317A/MAX9317B/MAX9317C lowskew, dual 1-to-5 differential drivers are designed for clock and data distribution.

The differential input is reproduced at five LVDS outputs with a low output-tooutput skew of 5ps.

Features

  • o Guaranteed 1.0GHz Operating Frequency MAX9317/MAX9317A/MAX9317B/MAX9317C Ordering Information PART TEMP RANGE.

📥 Download Datasheet

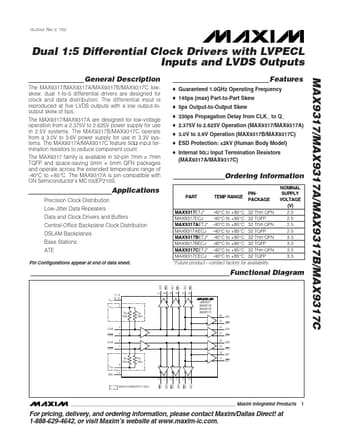

Datasheet preview – MAX9317A

Datasheet Details

Part number MAX9317A
Manufacturer Maxim Integrated Products
File Size 315.32 KB
Description Dual 1:5 Differential Clock Drivers with LVPECL Inputs and LVDS Outputs
Datasheet download datasheet MAX9317A Datasheet
Additional preview pages of the MAX9317A datasheet.

📁 Similar Datasheet

  • MAX9317 - Dual 1:5 Differential Clock Drivers (Maxim)
  • MAX931 - Ultra Low-Power / Low-Cost Comparators (Maxim)
  • MAX9316 - 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Driver (Maxim)
  • MAX9316A - 1:5 Differential LVPECL/LVECL/ HSTL Clock and Data Driver (Maxim)
  • MAX932 - Ultra Low-Power / Low-Cost Comparators (Maxim)
  • MAX9320B - 1:2 Differential PECL/ECL/LVPECL/LVECL Clock and Data Driver (Maxim)
  • MAX9321 - Differential LVPECL/LVECL/HSTL Receiver/Drivers (Maxim)
  • MAX9321A - Differential LVPECL/LVECL/HSTL Receiver/Drivers (Maxim Integrated)
  • MAX9321B - Differential PECL/ECL/LVPECL/LVECL Receiver/Driver (Maxim)
  • MAX933 - Ultra Low-Power / Low-Cost Comparators (Maxim)
Other Datasheets by Maxim Integrated Products
  • MAX9317B - Dual 1:5 Differential Clock Drivers with LVPECL Inputs and LVDS Outputs
  • MAX9317C - Dual 1:5 Differential Clock Drivers with LVPECL Inputs and LVDS Outputs
  • MAX9310A - 1:5 Clock Driver
  • MAX9311 - (MAX9311 / MAX9313) 1:10 Differential LVPECL/LVECL/HSTL Clock and Data Drivers
  • MAX9312 - (MAX9312 / MAX9314) Dual 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Drivers
  • MAX9313 - (MAX9311 / MAX9313) 1:10 Differential LVPECL/LVECL/HSTL Clock and Data Drivers
  • MAX9314 - (MAX9312 / MAX9314) Dual 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Drivers
  • MAX9315 - 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Driver

Full PDF Text Transcription

Click to expand full text
19-2543; Rev 0; 7/02 Dual 1:5 Differential Clock Drivers with LVPECL Inputs and LVDS Outputs General Description The MAX9317/MAX9317A/MAX9317B/MAX9317C lowskew, dual 1-to-5 differential drivers are designed for clock and data distribution. The differential input is reproduced at five LVDS outputs with a low output-tooutput skew of 5ps. The MAX9317/MAX9317A are designed for low-voltage operation from a 2.375V to 2.625V power supply for use in 2.5V systems. The MAX9317B/MAX9317C operate from a 3.0V to 3.6V power supply for use in 3.3V systems. The MAX9317A/MAX9317C feature 50Ω input termination resistors to reduce component count.
