MAX9316 - 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Driver

Datasheet Summary

Features

o Guaranteed 400mV Differential Output at 1.5GHz o Selectable Single-Ended or Differential Input o 130ps (max) Part-to-Part Skew at +25°C o 20ps Output-to-Output Skew o 365ps Propagation Delay o Synchronous Output Enable/Disable o On-Chip Reference for Single-Ended Inputs o Input Biased to Low when Open o Pin Compatible with MC100LVEL14 MAX9316 The MAX9316 is a low-skew, 1-to-5 differential driver designed for clock and data distribution. This device allows selection between two inputs: one di.

Datasheet Details

Part number	MAX9316
Manufacturer	Maxim
File Size	214.24 KB
Description	1:5 Differential LVPECL/LVECL/HSTL Clock and Data Driver
Datasheet	MAX9316 Datasheet
Additional preview pages of the MAX9316 datasheet.

📁 Similar Datasheet

MAX9310A - 1:5 Clock Driver (Maxim Integrated Products)

MAX9311 - (MAX9311 / MAX9313) 1:10 Differential LVPECL/LVECL/HSTL Clock and Data Drivers (Maxim Integrated Products)

MAX9312 - (MAX9312 / MAX9314) Dual 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Drivers (Maxim Integrated Products)

MAX9313 - (MAX9311 / MAX9313) 1:10 Differential LVPECL/LVECL/HSTL Clock and Data Drivers (Maxim Integrated Products)

MAX9314 - (MAX9312 / MAX9314) Dual 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Drivers (Maxim Integrated Products)

MAX9315 - 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Driver (Maxim Integrated Products)

MAX9317A - Dual 1:5 Differential Clock Drivers with LVPECL Inputs and LVDS Outputs (Maxim Integrated Products)

MAX9317B - Dual 1:5 Differential Clock Drivers with LVPECL Inputs and LVDS Outputs (Maxim Integrated Products)

MAX9317C - Dual 1:5 Differential Clock Drivers with LVPECL Inputs and LVDS Outputs (Maxim Integrated Products)

MAX9321A - Differential LVPECL/LVECL/HSTL Receiver/Drivers (Maxim Integrated)

Full PDF Text Transcription

Click to expand full text

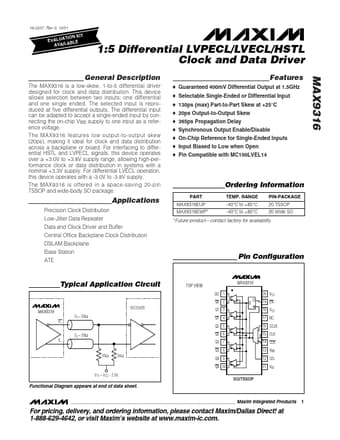

19-2237; Rev 0; 10/01 KIT ATION EVALU E L B AVAILA 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Driver General Description Features o Guaranteed 400mV Differential Output at 1.5GHz o Selectable Single-Ended or Differential Input o 130ps (max) Part-to-Part Skew at +25°C o 20ps Output-to-Output Skew o 365ps Propagation Delay o Synchronous Output Enable/Disable o On-Chip Reference for Single-Ended Inputs o Input Biased to Low when Open o Pin Compatible with MC100LVEL14 MAX9316 The MAX9316 is a low-skew, 1-to-5 differential driver designed for clock and data distribution. This device allows selection between two inputs: one differential and one single ended. The selected input is reproduced at five differential outputs.
