MAX9316A - 1:5 Differential LVPECL/LVECL/ HSTL Clock and Data Driver

Datasheet Summary

Features

o Guaranteed 400mV Differential Output at 1.5GHz o Selectable Single-Ended or Differential Input o 130ps (max) Part-to-Part Skew at +25°C o 20ps Output-to-Output Skew o 365ps Propagation Delay o Synchronous Output Enable/Disable o On-Chip Reference for Single-Ended Inputs o Input Biased to Low when Open o Pin Compatible with MC100EL14 MAX9316A The MAX9316A is a low-skew, 1-to-5 differential driver designed for clock and data distribution. This device allows selection between two inputs: one di.

Datasheet Details

Part number	MAX9316A
Manufacturer	Maxim
File Size	183.56 KB
Description	1:5 Differential LVPECL/LVECL/ HSTL Clock and Data Driver
Datasheet	MAX9316A Datasheet
Additional preview pages of the MAX9316A datasheet.

📁 Similar Datasheet

MAX9310A - 1:5 Clock Driver (Maxim Integrated Products)

MAX9311 - (MAX9311 / MAX9313) 1:10 Differential LVPECL/LVECL/HSTL Clock and Data Drivers (Maxim Integrated Products)

MAX9312 - (MAX9312 / MAX9314) Dual 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Drivers (Maxim Integrated Products)

MAX9313 - (MAX9311 / MAX9313) 1:10 Differential LVPECL/LVECL/HSTL Clock and Data Drivers (Maxim Integrated Products)

MAX9314 - (MAX9312 / MAX9314) Dual 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Drivers (Maxim Integrated Products)

MAX9315 - 1:5 Differential LVPECL/LVECL/HSTL Clock and Data Driver (Maxim Integrated Products)

MAX9317A - Dual 1:5 Differential Clock Drivers with LVPECL Inputs and LVDS Outputs (Maxim Integrated Products)

MAX9317B - Dual 1:5 Differential Clock Drivers with LVPECL Inputs and LVDS Outputs (Maxim Integrated Products)

MAX9317C - Dual 1:5 Differential Clock Drivers with LVPECL Inputs and LVDS Outputs (Maxim Integrated Products)

MAX9321A - Differential LVPECL/LVECL/HSTL Receiver/Drivers (Maxim Integrated)

Full PDF Text Transcription

Click to expand full text

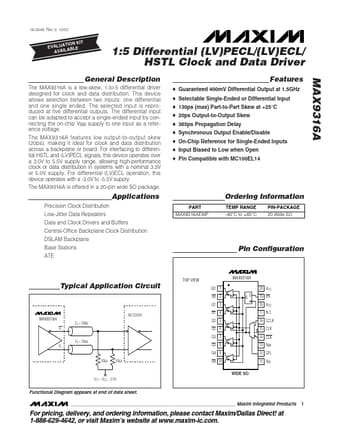

19-2648; Rev 0; 10/02 KIT ATION EVALU E L B AVAILA 1:5 Differential (LV)PECL/(LV)ECL/ HSTL Clock and Data Driver General Description Features o Guaranteed 400mV Differential Output at 1.5GHz o Selectable Single-Ended or Differential Input o 130ps (max) Part-to-Part Skew at +25°C o 20ps Output-to-Output Skew o 365ps Propagation Delay o Synchronous Output Enable/Disable o On-Chip Reference for Single-Ended Inputs o Input Biased to Low when Open o Pin Compatible with MC100EL14 MAX9316A The MAX9316A is a low-skew, 1-to-5 differential driver designed for clock and data distribution. This device allows selection between two inputs: one differential and one single ended. The selected input is reproduced at five differential outputs.
