MAX1686H, MAX1686 - Charge Pumps

MAX1686H Description

MAX1686/MAX1686H 19-1376; Rev 1; 12/98 3V to 5V Regulating Charge Pumps for SIM Cards General .
The MAX1686 provides power for dual-voltage subscriber ID module (SIM) cards in portable applications such as GSM cellular phones.

MAX1686H Features

* o 2.7V to 4.2V Input Range o 12mA min Charge-Pump

MAX1686H Applications

* such as GSM cellular phones. Designed to reside in the portable unit (cellular phone handset), the 1MHz charge pump converts a 2.7V to 4.2V input to regulated 5V output. The MAX1686H has a nominal output voltage of 5.0V, while the MAX1686 is set to 4.75V to reduce SIMcard current drain. The charge p

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX1686H, MAX1686. Please refer to the document for exact specifications by model.

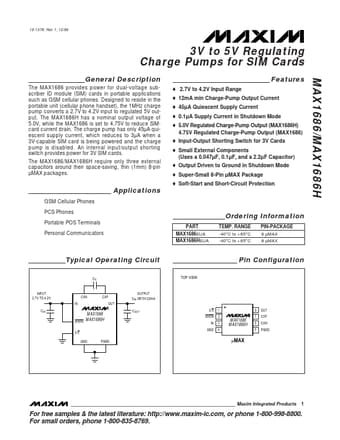

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX1686H, MAX1686
Manufacturer
Maxim Integrated ↗
File Size
149.87 KB
Datasheet
MAX1686_MaximIntegratedProducts.pdf
Description
Charge Pumps
Note
This datasheet PDF includes multiple part numbers: MAX1686H, MAX1686.
Please refer to the document for exact specifications by model.
