MAX17505 - 1.7A Synchronous Step-Down DC-DC Converter

Name: MAX17505
SKU: MAX17505-1589255

Maxim Integrated

📥 Download Datasheet

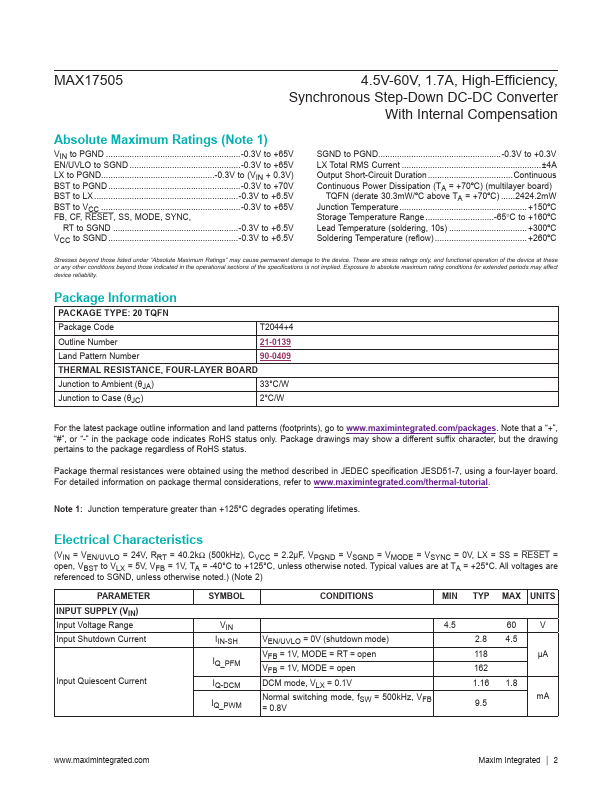

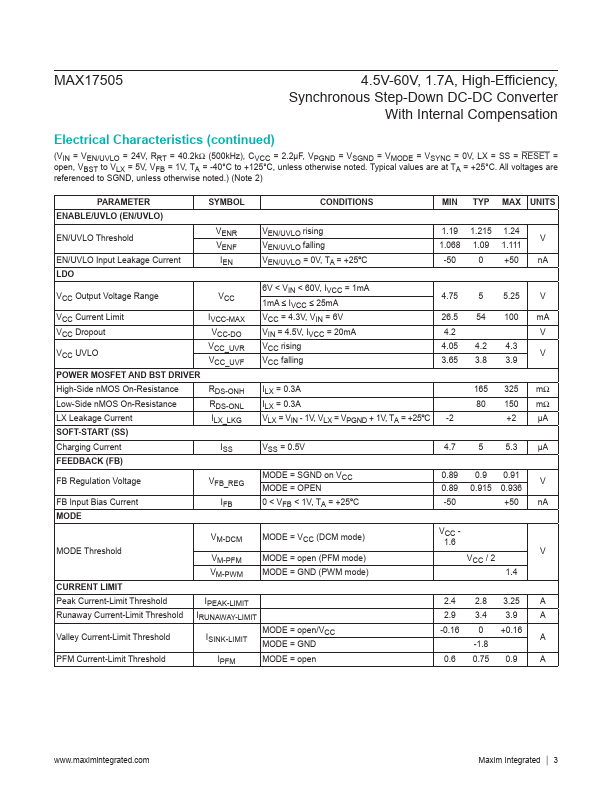

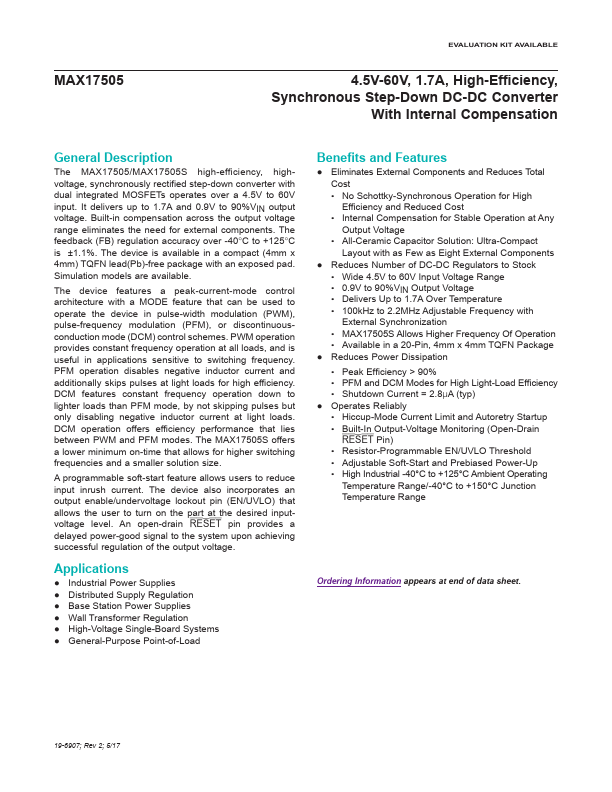

MAX17505 Datasheet Preview — Preview of MAX17505 PDF

Datasheet Details

Part number	MAX17505
Manufacturer	Maxim Integrated ↗
File Size	1.54 MB
Description	1.7A Synchronous Step-Down DC-DC Converter
Datasheet	MAX17505-MaximIntegrated.pdf

MAX17505 Product details

Description

The MAX17505/MAX17505S high-efficiency, highvoltage, synchronously rectified step-down converter with dual integrated MOSFETs operates over a 4.5V to 60V input.

Features

a peak-current-mode control architecture with a MODE feature that can be used to operate the device in pulse-width modulation (PWM), pulse-frequency modulation (PFM), or discontinuousconduction mode (DCM) control schemes. PWM operation provides constant frequency operation at all loads, and is useful in.
