MAX17510, MAX1510 Datasheet - Maxim Integrated

MAX17510 Low-Voltage DDR Linear Regulators

The MAX1510/MAX17510 DDR linear regulators source and sink up to 3A peak (typ) using internal n-channel MOSFETs. These linear regulators deliver an accurate 0.5V to 1.5V output from a low-voltage power input (VIN = 1.1V to 3.6V). The MAX1510/MAX17510 use a separate 3.3V bias supply to power the cont.

MAX17510 Features

* Internal Power MOSFETs with Current Limit (3A typ)

* Fast Load-Transient Response

* External Reference Input with Reference Output Buffer

* 1.1V to 3.6V Power Input

* ±15mV (max) Load-Regulation Error

* Thermal-Fault Protection

* Shutd

MAX1510_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: MAX17510, MAX1510. Please refer to the document for exact specifications by model.

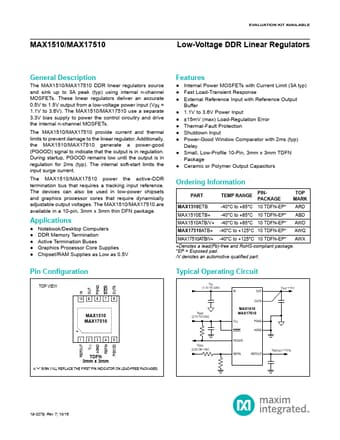

MAX17510 Datasheet Preview Page 2 MAX17510 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX17510, MAX1510

Manufacturer:

Maxim Integrated ↗

File Size:

721.46 KB

Description:

Low-voltage ddr linear regulators.

Note:

This datasheet PDF includes multiple part numbers: MAX17510, MAX1510.
Please refer to the document for exact specifications by model.
