MAX17502 - Synchronous Step-Down DC-DC Converter

MAX17502 Description

19-6245; Rev 0; 5/12 MAX17502 60V, 1A, Ultra-Small, High-Efficiency, Synchronous Step-Down DC-DC Converter General .
The MAX17502 high-efficiency, high-voltage, synchronous step-down DC-DC converter operates over a 4.

MAX17502 Features

* peak-current-mode control with pulse-width modulation (PWM). The PWM operation ensures constant switching frequency at all operating conditions. The low-resistance, on-chip, pMOS/ nMOS switches ensure high efficiency at full load while minimizing the critical inductances, making the layout a much si

MAX17502 Applications

* The ultra-wide-input operation makes it ideal for not only industrial control and building automation, but also base stations, telecom, home entertainment, and automotive applications. It delivers output currents up to 1A, at output voltages of 3.3V and 5V. The output voltage is accurate within Q1.

📥 Download Datasheet

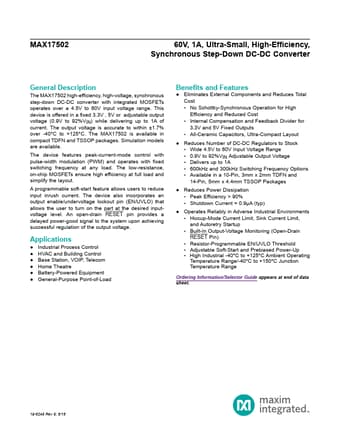

Preview of MAX17502 PDF
