MAX17511C

3-/2-/1-Phase + 2-/1-Phase Quick-PWM Controllers

MAX17511C Features

* detect a fault, the controller shuts down both outputs. The multiphase regulators include transient-phase overlap and active overshoot suppression, which speed up the response time and reduce the total output capacitance. The CPU and GFX outputs are controlled independently by writing the appropriat

MAX17511C General Description

The MAX17411/MAX17511/MAX17511C/MAX17511N/ MAX17511T are dual-output, step-down, constant on-time Quick-PWMK controllers for VR12/IMVP-7 CPU core supplies. The controllers consist of two high-current switching power supplies for CPU and GFX cores. The CPU regulator (regulator A) is a three-phase con.

MAX17511C Datasheet (1.23 MB)

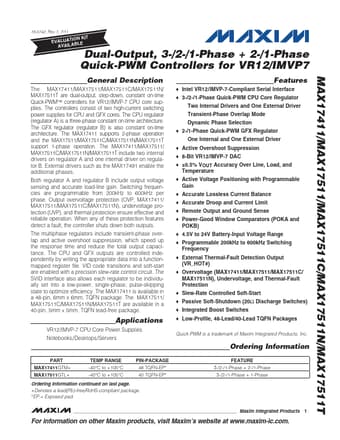

Preview of MAX17511C PDF

Datasheet Details

Part number:

MAX17511C

Manufacturer:

Maxim Integrated ↗

File Size:

1.23 MB

Description:

3-/2-/1-phase + 2-/1-phase quick-pwm controllers.
MAX17411/MAX17511/MAX17511C/MAX17511N/MAX17511T 19-5742; Rev 1; 7/11 EVAALVUAAILTAIOBNLEKIT Dual-Output, 3-/2-/1-Phase + 2-/1-Phase Quick-PWM Control.
