MAX17525 Datasheet - Maxim Integrated

MAX17525-MaximIntegrated.pdf

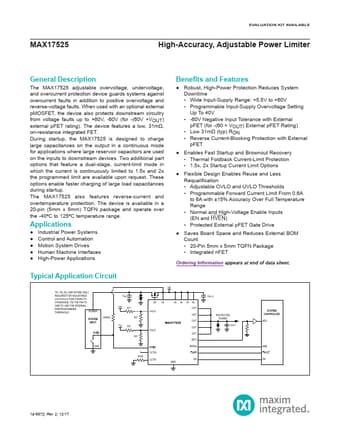

Preview of MAX17525 PDF
MAX17525 Datasheet Preview Page 2 MAX17525 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX17525

Manufacturer:

Maxim Integrated ↗

File Size:

603.24 KB

Description:

Adjustable power limiter.

MAX17525, Adjustable Power Limiter

The MAX17525 adjustable overvoltage, undervoltage, and overcurrent protection device guards systems against overcurrent faults in addition to positive overvoltage and reverse-voltage faults.

When used with an optional external pMOSFET, the device also protects downstream circuitry from voltage fault

MAX17525 Features

* a low, 31mΩ, on-resistance integrated FET. During startup, the MAX17525 is designed to charge large capacitances on the output in a continuous mode for applications where large reservoir capacitors are used on the inputs to downstream devices. Two additional part options that feature a dual-stage, c
