MAX4029, MAX4028 2:1 Video Multiplexer-Amplifiers

Maxim Integrated

Description

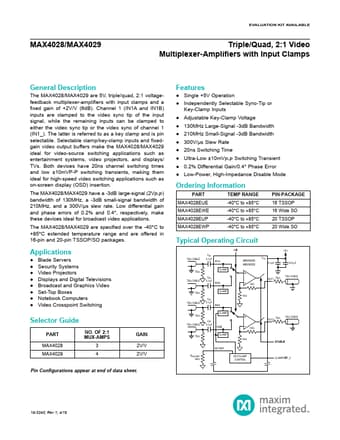

MAX4028/MAX4029 EVALUATION KIT AVAILABLE Triple/Quad, 2:1 Video Multiplexer-Amplifiers with Input Clamps General .
The MAX4028/MAX4029 are 5V, triple/quad, 2:1 voltagefeedback multiplexer-amplifiers with input clamps and a fixed gain of +2V/V (6dB).

📥 Download Datasheet

MAX4029 Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX4029, MAX4028. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MAX4029, MAX4028
Manufacturer: Maxim Integrated ↗
File Size: 538.01 KB
Datasheet: MAX4028-MaximIntegrated.pdf
Description: 2:1 Video Multiplexer-Amplifiers
Note: This datasheet PDF includes multiple part numbers: MAX4029, MAX4028.
Please refer to the document for exact specifications by model.

Applications

* such as entertainment systems, video projectors, and displays/ TVs. Both devices have 20ns channel switching times and low ±10mVP-P switching transients, making them ideal for high-speed video switching applications such as on-screen display (OSD) insertion. The MAX4028/MAX4029 have a -3dB large-sig
