MAX4743, MAX4741 - Single-Supply Dual SPST Analog Switches

The MAX4743 by Maxim Integrated is a Single-Supply Dual SPST Analog Switches. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the MAX4743 Single-Supply Dual SPST Analog Switches datasheet (Maxim Integrated).

Datasheet Details

Part number MAX4743, MAX4741
Manufacturer Maxim Integrated
File Size 634.86 KB
Description Single-Supply Dual SPST Analog Switches
Datasheet download datasheet MAX4741_MaximIntegratedProducts.pdf
Note This datasheet PDF includes multiple part numbers: MAX4743, MAX4741.
Please refer to the document for exact specifications by model.

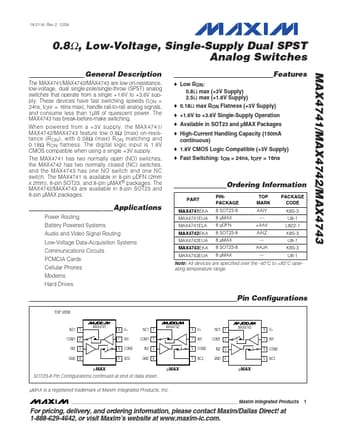

Additional preview pages of the MAX4743 datasheet.

MAX4743 Product details

Description

The MAX4741/MAX4742/MAX4743 are low on-resistance, low-voltage, dual single-pole/single-throw (SPST) analog switches that operate from a single +1.6V to +3.6V supply.
