MAX474 Single/Dual/Quad / 10MHz Single-Supply Op Amps

The single MAX473, dual MAX474, and quad MAX475 are single-supply (2.7V to 5.25V), unity-gain-stable op amps with rail-to-rail output swing. Each op amp guarantees a 10MHz unity-gain bandwidth, 15V/µs slew rate, and 600Ω drive capability while typically consuming only 2mA supply current. In addition.

MAX474 Features

* o 15V/µs Min Slew Rate o +3V Single-Supply Operation o Guaranteed 10MHz Unity-Gain Bandwidth o 2mA Supply Current per Amplifier o Input Range Includes Negative Rail o Outputs Short-Circuit Protected o Rail-to-Rail Output Swing (to within ±50mV) o µMAX Package (the smallest 8-pin SO) MAX473/MAX474/M

MAX474_MaximIntegratedProducts.pdf

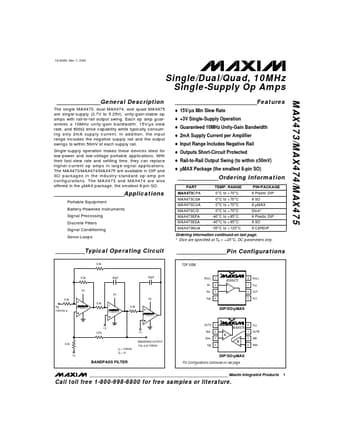

Preview of MAX474 PDF
MAX474 Datasheet Preview Page 2 MAX474 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX474

Manufacturer:

Maxim

File Size:

144.36 KB

Description:

Single/dual/quad / 10mhz single-supply op amps.
