MAX4968 High-Voltage Analog Switches

Maxim Integrated

Description

MAX4968/MAX4968A 19-5786; Rev 2; 1/12 16-Channel, Linear, High-Voltage Analog Switches General .
The MAX4968/MAX4968A are 16-channel, high-linearity, high-voltage, bidirectional SPST analog switches with 18I (typ) on-resistance.

📥 Download Datasheet

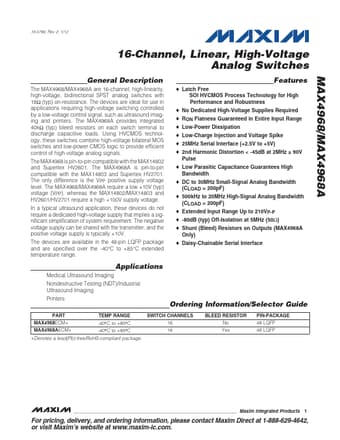

MAX4968 Datasheet Preview — Preview of MAX4968 PDF

Datasheet Specifications

Part number: MAX4968
Manufacturer: Maxim Integrated ↗
File Size: 425.91 KB
Datasheet: MAX4968-MaximIntegrated.pdf
Description: High-Voltage Analog Switches

Features

* S Latch Free SOI HVCMOS Process Technology for High Performance and Robustness S No Dedicated High-Voltage Supplies Required S RON Flatness Guaranteed in Entire Input Range S Low-Power Dissipation S Low-Charge Injection and Voltage Spike S 25MHz Serial Interface (+2.5V to +5V) S 2nd Harmonic Distort

Applications

* requiring high-voltage switching controlled by a low-voltage control signal, such as ultrasound imaging and printers. The MAX4968A provides integrated 40kI (typ) bleed resistors on each switch terminal to discharge capacitive loads. Using HVCMOS technology, these switches combine high-voltage bilate
