MAX4968A, MAX4968 High-Voltage Analog Switches

MAX4968A Description

MAX4968/MAX4968A 19-5786; Rev 2; 1/12 16-Channel, Linear, High-Voltage Analog Switches General .
The MAX4968/MAX4968A are 16-channel, high-linearity, high-voltage, bidirectional SPST analog switches with 18I (typ) on-resistance.

MAX4968A Features

* S Latch Free SOI HVCMOS Process Technology for High Performance and Robustness S No Dedicated High-Voltage Supplies Required S RON Flatness Guaranteed in Entire Input Range S Low-Power Dissipation S Low-Charge Injection and Voltage Spike S 25MHz Serial Interface (+2.5V to +5V) S 2nd Harmonic Distort

MAX4968A Applications

* requiring high-voltage switching controlled by a low-voltage control signal, such as ultrasound imaging and printers. The MAX4968A provides integrated 40kI (typ) bleed resistors on each switch terminal to discharge capacitive loads. Using HVCMOS technology, these switches combine high-voltage bilate

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX4968A, MAX4968. Please refer to the document for exact specifications by model.

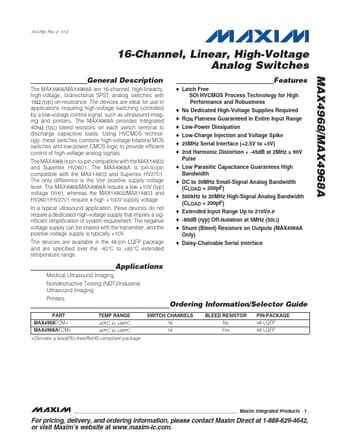

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX4968A, MAX4968
Manufacturer
Maxim Integrated ↗
File Size
425.91 KB
Datasheet
MAX4968-MaximIntegrated.pdf
Description
High-Voltage Analog Switches
Note
This datasheet PDF includes multiple part numbers: MAX4968A, MAX4968.
Please refer to the document for exact specifications by model.
