MAX496 375MHz Quad Closed-Loop Video Buffers

MAX496 Description

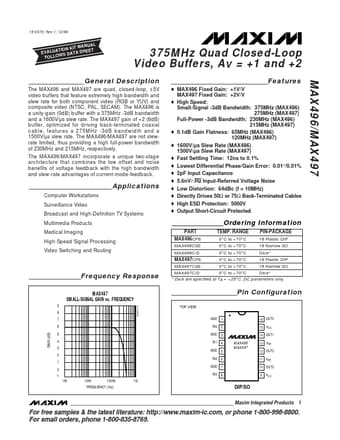

19-0373; Rev 1; 12/98 L MANUA ION KIT HEET T A U L EVA TA S WS DA FOLLO 375MHz Quad Closed-Loop Video Buffers, AV = +1 and +2 ______________________.
The MAX496 and MAX497 are quad, closed-loop, ±5V video buffers that feature extremely high bandwidth and slew rate for both component video (RGB or YU.

MAX496 Features

* o MAX496 Fixed Gain: +1V/V MAX497 Fixed Gain: +2V/V o High Speed: Small-Signal -3dB Bandwidth: 375MHz (MAX496) 275MHz (MAX497) Full-Power -3dB Bandwidth: 230MHz (MAX496) 215MHz (MAX497) o 0.1dB Gain Flatness: 65MHz (MAX496) 120MHz (MAX497) o 1600V/µs Slew Rate (MAX496) 1500V/µs Slew Rate (MAX497) o

MAX496 Applications

* Computer Workstations Surveillance Video Broadcast and High-Definition TV Systems Multimedia Products Medical Imaging High-Speed Signal Processing Video Switching and Routing _______________Ordering Information PART MAX496CPE TEMP. RANGE 0°C to +70°C PIN-PACKAGE 16 Plastic DIP _______________Frequ
