MAX6713M

4-Pin SC70 Microprocessor Reset Circuits

MAX6713M Features

* Precision Monitoring of 2.5V, 3.0V, 3.3V, and 5.0V Power-Supply Voltages

* Fully Specified Over Temperature

* Available in Three Output Configurations Push-Pull RESET Output (MAX6711) Push-Pull RESET Output (MAX6712) Open-Drain RESET Output (MAX6713)

* 140ms

MAX6713M General Description

The MAX6711/MAX6712/MAX6713 are microprocessor (µP) supervisory circuits used to monitor the power supplies in µP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5.0V, +3.3V, +3.0V, or +2.5V-powered circu.

MAX6713M Datasheet (333.72 KB)

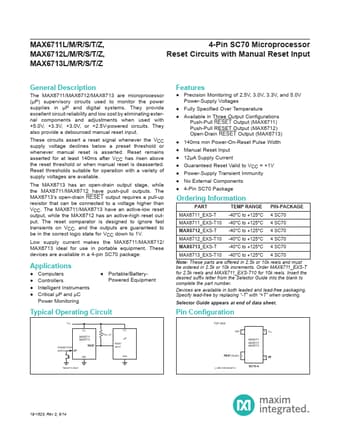

Preview of MAX6713M PDF

Datasheet Details

Part number:

MAX6713M

Manufacturer:

Maxim Integrated ↗

File Size:

333.72 KB

Description:

4-pin sc70 microprocessor reset circuits.
