MAX6713R, MAX6711L Datasheet - Maxim Integrated

MAX6713R 4-Pin SC70 Microprocessor Reset Circuits

The MAX6711/MAX6712/MAX6713 are microprocessor (µP) supervisory circuits used to monitor the power supplies in µP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5.0V, +3.3V, +3.0V, or +2.5V-powered circu.

MAX6713R Features

* Precision Monitoring of 2.5V, 3.0V, 3.3V, and 5.0V Power-Supply Voltages

* Fully Specified Over Temperature

* Available in Three Output Configurations Push-Pull RESET Output (MAX6711) Push-Pull RESET Output (MAX6712) Open-Drain RESET Output (MAX6713)

* 140ms

MAX6711L_MaximIntegratedProducts.pdf

This datasheet PDF includes multiple part numbers: MAX6713R, MAX6711L. Please refer to the document for exact specifications by model.

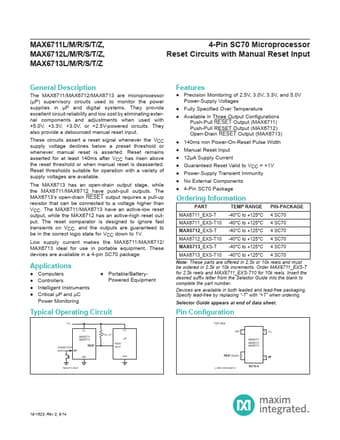

MAX6713R Datasheet Preview Page 2 MAX6713R Datasheet Preview Page 3

Datasheet Details

Part number:

MAX6713R, MAX6711L

Manufacturer:

Maxim Integrated ↗

File Size:

333.72 KB

Description:

4-pin sc70 microprocessor reset circuits.

Note:

This datasheet PDF includes multiple part numbers: MAX6713R, MAX6711L.
Please refer to the document for exact specifications by model.
