MAX6713S, MAX6711L, 4-Pin SC70 Microprocessor Reset Circuits

MAX6711L/M/R/S/T/Z, MAX6712L/M/R/S/T/Z, MAX6713L/M/R/S/T/Z 4-Pin SC70 Microprocessor Reset Circuits with Manual Reset Input General .
The MAX6711/MAX6712/MAX6713 are microprocessor (µP) supervisory circuits used to monitor the power supplies in µP and digital systems.

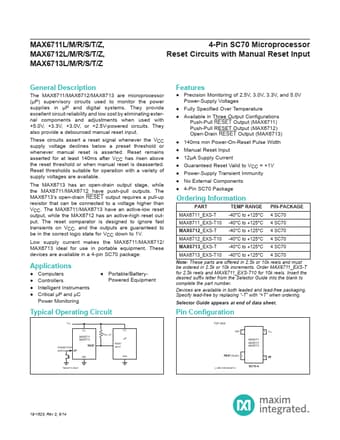

datasheet Preview Page 1 from Datasheet4u.com

MAX6711L_MaximIntegratedProducts.pdf

MAX6713S Datasheet Preview — This datasheet PDF includes multiple part numbers: MAX6713S, MAX6711L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MAX6713S, MAX6711L

Manufacturer:

Maxim Integrated ↗

File Size:

333.72 KB

Description:

4-Pin SC70 Microprocessor Reset Circuits

Note:

This datasheet PDF includes multiple part numbers: MAX6713S, MAX6711L.
Please refer to the document for exact specifications by model.

Features

* Precision Monitoring of 2.5V, 3.0V, 3.3V, and 5.0V Power-Supply Voltages
* Fully Specified Over Temperature
* Available in Three Output Configurations Push-Pull RESET Output (MAX6711) Push-Pull RESET Output (MAX6712) Open-Drain RESET Output (MAX6713)
* 140ms

Applications

* Computers
* Controllers
* Intelligent Instruments
* Critical µP and µC Power Monitoring
* Portable/BatteryPowered Equipment Typical Operating Circuit VCC VCC MAX6711 MAX6713 PUSHBUTTON SWITCH MR RESET GND VCC RPULL-UP
* µP RESET INPUT GND
