MAX809, MAX803 3-Pin Microprocessor Reset Circuits

MAX809 Description

MAX803/MAX809/ MAX810 3-Pin Microprocessor Reset Circuits General .
The MAX803/MAX809/MAX810 are microprocessor (μP) supervisory circuits used to monitor the power supplies in μP and digital systems.

MAX809 Features

* Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power-Supply Voltages
* Fully Specified Over Temperature
* Available in Three Output Configurations
* Open-Drain RESET Output (MAX803)
* Push-Pull RESET Output (MAX809)
* Push-Pull RESET Output (M

MAX809 Applications

* Computers
* Controllers
* Intelligent Instruments
* Critical μP and μC Power Monitoring
* Portable/Battery-Powered Equipment

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX809, MAX803. Please refer to the document for exact specifications by model.

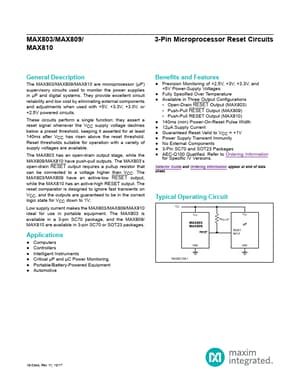

datasheet Preview Page 2 datasheet Preview Page 3
