MAX809M

3-Pin Microprocessor Reset Circuits

MAX809M Features

* o Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power-Supply Voltages o Fully Specified Over Temperature o Available in Three Output Configurations Open-Drain RESET Output (MAX803) Push-Pull RESET Output (MAX809) Push-Pull RESET Output (MAX810) o 140ms min Power-On Reset Pulse Width o 12µA Supp

MAX809M General Description

The MAX803/MAX809/MAX810 are microprocessor (µP) supervisory circuits used to monitor the power supplies in µP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V, or +2.5V-powered circuits. .

MAX809M Datasheet (136.66 KB)

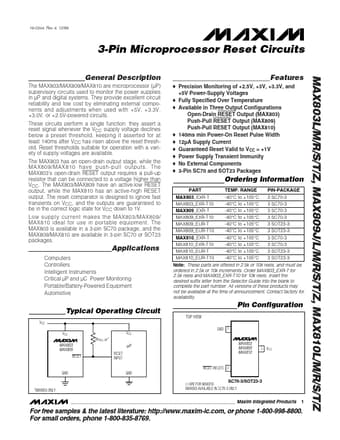

Preview of MAX809M PDF

Datasheet Details

Part number:

MAX809M

Manufacturer:

Maxim

File Size:

136.66 KB

Description:

3-pin microprocessor reset circuits.
