MAX809J Datasheet - Maxim

MAX809J 3-Pin Microprocessor Reset Circuits

The MAX803/MAX809/MAX810 are microprocessor (µP) supervisory circuits used to monitor the power supplies in µP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V, or +2.5V-powered circuits. .

MAX809J Features

* o Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power-Supply Voltages o Fully Specified Over Temperature o Available in Three Output Configurations Open-Drain RESET Output (MAX803) Push-Pull RESET Output (MAX809) Push-Pull RESET Output (MAX810) o 140ms min Power-On Reset Pulse Width o 12µA Supp

MAX809J_MaximIntegratedProducts.pdf

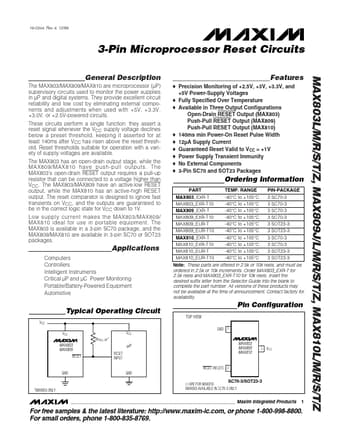

Preview of MAX809J PDF
MAX809J Datasheet Preview Page 2 MAX809J Datasheet Preview Page 3

Datasheet Details

Part number:

MAX809J

Manufacturer:

Maxim

File Size:

136.66 KB

Description:

3-pin microprocessor reset circuits.
