MAX1561 Datasheet, Leds, Maxim

MAX1561 Features

  • Leds o Accurate Current Regulation for Uniform Illumination o High Efficiency Up to 87% o Flexible Analog or PWM Dimming Control o Up to 900mW Output Power with Internal 30V MOSFET Switch o

PDF File Details

Part number:

MAX1561

Manufacturer:

Maxim

File Size:

245.35kb

Download:

📄 Datasheet

Description:

High-efficiency / 26v step-up converters for two to six white leds. The MAX1561/MAX1599 step-up converters drive up to six white LEDs with a constant current to provide backlight in cell phones, PDAs,

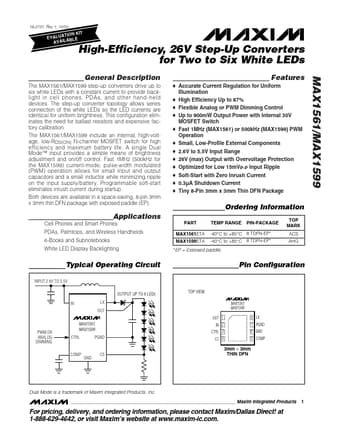

Datasheet Preview: MAX1561 📥 Download PDF (245.35kb)
Page 2 of MAX1561 Page 3 of MAX1561

MAX1561 Application

  • Applications Cell Phones and Smart Phones PDAs, Palmtops, and Wireless Handhelds e-Books and Subnotebooks White LED Display Backlighting
