MAX1924 - Advanced Li+ Battery-Pack Protectors

MAX1924 Description

19-2278; Rev 0; 4/02 Advanced Li+ Battery-Pack Protectors General .
The MAX1894/MAX1924 are lithium-ion/lithium-polymer (Li+) battery-pack protector ICs for 3- or 4-series Li+ battery packs.

MAX1924 Features

* All protection thresholds and delays do not require any external components and are trimmed at the factory. If any cell voltage drops below the undervoltage threshold, the MAX1894/MAX1924 disconnect the pack from the load and power down to prevent deep discharge of the pack. The MAX1894/MAX1924 off

MAX1924 Applications

* 3- or 4-Series Li+ Battery Packs QSOP Ordering Information PART MAX1894XEEE MAX1924VEEE MAX1924XEEE TEMP RANGE -40°C to +85°C -40°C to +85°C -40°C to +85°C PIN-PACKAGE 16 QSOP 16 QSOP 16 QSOP CELLS 4 3 4 OVERVOLTAGE 4.25V
* 4.35V
* 4.35V
* OVERVOLTAGE THRESHOLD HYSTERESIS No Yes Yes

📥 Download Datasheet

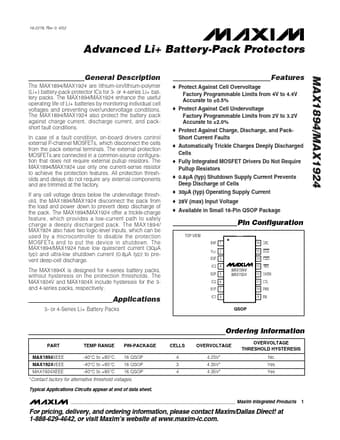

Preview of MAX1924 PDF
