MAX1927 - PWM Step-Down DC-DC Converters

MAX1927 Description

19-2527; Rev 0; 7/02 Low-Output-Voltage, 800mA, PWM Step-Down DC-DC Converters General .
The MAX1927/MAX1928 800mA step-down converters power low-voltage microprocessors in compact equipment requiring the highest possible efficiency.

MAX1927 Features

* include internal soft-start, power-OK (POK) output, and selectable forced PWM operation for lower noise at all load currents. The MAX1928 is available with several preset output voltages: 1.5V (MAX1928-15), 1.8V (MAX1928-18), and 2.5V (MAX1928-25). The MAX1927R has adjustable output range down to 0.

MAX1927 Applications

* WCDMA Handsets PDAs and Palmtops DSP Core Power Battery-Powered Equipment MAX1928EUB15 MAX1928EUB18 MAX1928EUB25 Pin Configuration TOP VIEW PWM 1 GND REF FB COMP 2 3 4 5 10 POK 9 BATT VIN 2.6V TO 5.5V Typical Operating Circuit PWM L1 LX SHDN RC COMP CC Cf FB C2 VOUT 0.75V AT 800mA BATT C1 MAX19

📥 Download Datasheet

Preview of MAX1927 PDF

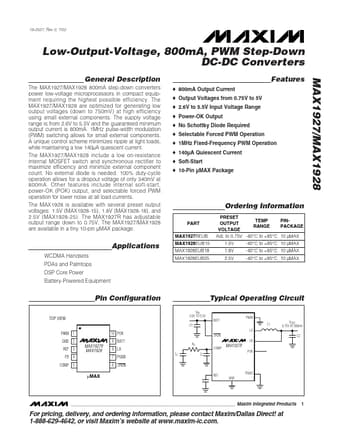

datasheet Preview Page 2 datasheet Preview Page 3
