MAX3750 - +3.3V / 2.125Gbps/1.0625Gbps Fibre Channel Port Bypass ICs

MAX3750 Description

19-4792; Rev 1; 1/99 KIT ATION EVALU E L B AVAILA +3.3V, 2.125Gbps/1.0625Gbps Fibre Channel Port Bypass ICs General .
Features o Single +3.

MAX3750 Features

* o Single +3.3V Supply o Low Jitter: 10ps o Low Power Consumption 190mW (MAX3750) 180mW (MAX3751) o Large Output Signal Swing: >1000mVp-p o Mismatch Tolerant Output Driver Stage o 150Ω Differential On-Chip Termination on All Inputs o 150Ω On-Chip Back Termination on All Output Ports MAX3750/MAX3751

MAX3750 Applications

* 2.125Gbps Fibre Channel Arbitrated Loop 1.0625Gbps Fibre Channel Arbitrated Loop Mass Storage Systems RAID/JBOD Applications PART MAX3750CEE MAX3751CEE Ordering Information TEMP. RANGE 0°C to +70°C 0°C to +70°C PIN-PACKAGE 16 QSOP 16 QSOP Typical Application Circuit FC-AL DISK DRIVE FC-AL DISK DRI

📥 Download Datasheet

Preview of MAX3750 PDF

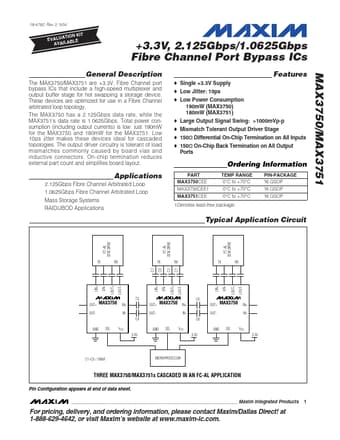

datasheet Preview Page 2 datasheet Preview Page 3
