MAX3754 Datasheet, Ics, Maxim

MAX3754 Features

  • Ics o Pin Selectable 1.0625Gbps/2.125Gbps Dual-Rate Operation o Meets Fibre Channel Jitter Tolerance o 1400mV Typical Differential Output Swing o 3.0V to 3.6V Operation o No Reference Clock

PDF File Details

Part number:

MAX3754

Manufacturer:

Maxim

File Size:

281.82kb

Download:

📄 Datasheet

Description:

1gbps/2gbps fibre channel quad-port bypass ics. The MAX3754/MAX3755 quad-port bypass circuits (PBCs) are designed for use in Fibre Channel Arbitrated Loop applications. Each consist

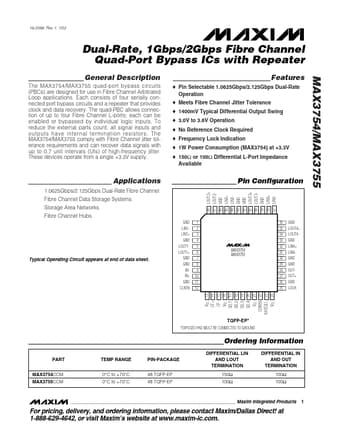

Datasheet Preview: MAX3754 📥 Download PDF (281.82kb)
Page 2 of MAX3754 Page 3 of MAX3754

MAX3754 Application

  • Applications Each consists of four serially connected port bypass circuits and a repeater that provides clock and data recovery. The quad-PBC allow
