MAX3875 - 2.5Gbps / Low-Power / #.3V Clock Recovery and Data Retiming IC

MAX3875 Description

19-4789; Rev 0; 10/98 2.5Gbps, Low-Power, +3.3V Clock Recovery and Data Retiming IC General .
The MAX3875 is a compact, low-power clock recovery and data retiming IC for 2.

MAX3875 Features

* o Exceeds ANSI, ITU, and Bellcore SONET/SDH Regenerator Specifications o 400mW Power Dissipation (at +3.3V) o Clock Jitter Generation: 0.003UIRMS o Single +3.3V or +5V Power Supply o Fully Integrated Clock Recovery and Data Retiming o Additional High-Speed Input Facilitates System Loopback Diagnosti

MAX3875 Applications

* The fully integrated phase-locked loop recovers a synchronous clock signal from the serial NRZ data input, which is retimed by the recovered clock. Differential PECL-compatible outputs are provided for both clock and data signals, and an additional 2.488Gbps serial input is available for system loo

📥 Download Datasheet

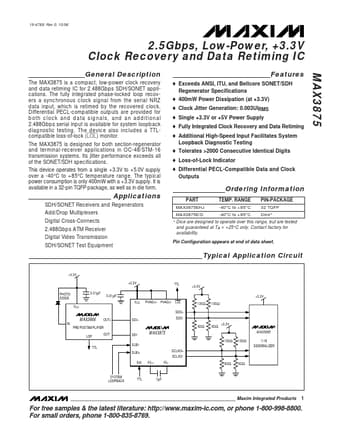

Preview of MAX3875 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX3875
Manufacturer
Maxim
File Size
126.55 KB
Datasheet
MAX3875_MaximIntegratedProducts.pdf
Description
2.5Gbps / Low-Power / #.3V Clock Recovery and Data Retiming IC
