MAX4530, MAX - Low-Voltage / CMOS Analog Multiplexers/Switches with Enable Inputs and Address Latching

MAX4530 Description

19-1162; Rev 0; 12/96 Low-Voltage, CMOS Analog Multiplexers/Switches with Enable Inputs and Address Latching _______________General .
The MAX4530/MAX4531/MAX4532 are low-voltage, CMOS analog ICs configured as an 8-channel multiplexer (mux) (MAX4530), two 4-channel muxes (MAX4531), an.

MAX4530 Features

* o Pin Compatible with 74HC4351/74HC4352/74HC4353 o ±2.0V to ±6V Dual Supplies +2.0V to +12V Single Supply o 75Ω Signal Paths with ±5V Supplies 150Ω Signal Paths with +5V Supply o Rail-to-Rail Signal Handling o tON and tOFF = 150ns and 120ns at ±4.5V o 2kV ESD Protection pe

MAX4530 Applications

* Battery-Operated Equipment Data Acquisition Test Equipment Avionics Networking ATE Equipment Audio-Signal Routing ______________Ordering Information PART MAX4530CPP MAX4530CWP MAX4530CAP TEMP. RANGE 0°C to +70°C 0°C to +70°C 0°C to +70°C PIN-PACKAGE 20 Plastic DIP 20 SO 20 SSOP MAX4530C/D 0°C to +

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX4530, MAX. Please refer to the document for exact specifications by model.

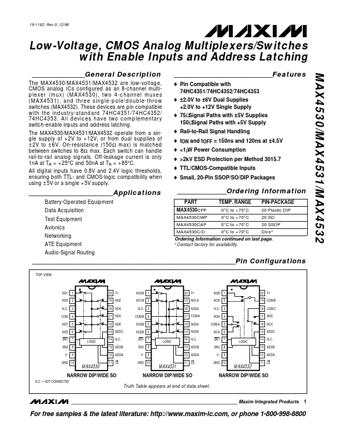

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX4530, MAX
Manufacturer
Maxim
File Size
148.69 KB
Datasheet
MAX-4530.pdf
Description
Low-Voltage / CMOS Analog Multiplexers/Switches with Enable Inputs and Address Latching
Note
This datasheet PDF includes multiple part numbers: MAX4530, MAX.
Please refer to the document for exact specifications by model.
