MAX4532, MAX4531 - CMOS Analog Multiplexers/Switches

MAX4532 Description

19-1162; Rev 0a; 12/96 Low-Voltage, CMOS Analog Multiplexers/Switches with Enable Inputs and Address Latching General .
The MAX4530/MAX4531/MAX4532 are low-voltage, CMOS analog ICs configured as an 8-channel multiplexer (mux) (MAX4530), two 4-channel muxes (MAX4531), an.

MAX4532 Features

* o Pin Compatible with 74HC4351/74HC4352/74HC4353 o ±2.0V to ±6V Dual Supplies +2.0V to +12V Single Supply o 75Ω Signal Paths with ±5V Supplies 150Ω Signal Paths with +5V Supply o Rail-to-Rail® Signal Handling o tON and tOFF = 150ns and 120ns at ±4.5V o 2kV ESD Protection pe

MAX4532 Applications

* Battery-Operated Equipment Data Acquisition Test Equipment Avionics Networking ATE Equipment Audio-Signal Routing Rail-to-Rail is a registered trademark of Nippon Motorola, Ltd. PART MAX4530CPP MAX4530CWP MAX4530CAP MAX4530C/D Ordering Information TEMP. RANGE 0°C to +70°C 0°C to +70°C 0°C to +70°C

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX4532, MAX4531. Please refer to the document for exact specifications by model.

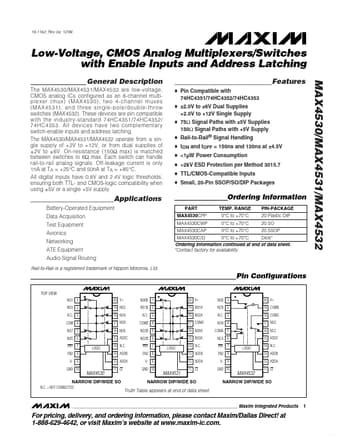

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX4532, MAX4531
Manufacturer
Maxim
File Size
473.30 KB
Datasheet
MAX4531-Maxim.pdf
Description
CMOS Analog Multiplexers/Switches
Note
This datasheet PDF includes multiple part numbers: MAX4532, MAX4531.
Please refer to the document for exact specifications by model.
