MAX4536, MAX - Quad / Low-Voltage / SPST Analog Switches with Enable

MAX4536 Description

19-1148; Rev 0; 11/96 Quad, Low-Voltage, SPST Analog Switches with Enable _________________General .
The MAX4536/MAX4537/MAX4538 are quad, low-voltage, single-pole/single-throw (SPST) analog switches with a common enable pin.

MAX4536 Features

* o Pin Compatible with 74HC4316 o ±2.0V to ±6V Dual Supplies +2.0V to +12V Single Supply o Four Separately Controlled SPST Switches with Common Enable o 100Ω Signal Paths with Dual ±5V Supplies 200Ω Signal Paths with Single +4.5V Supply o Rail-to-Rail Signal Handling o tON and tOFF = 100ns and 80ns a

MAX4536 Applications

* Battery-Operated Equipment Low-Voltage Data Acquisition Test Equipment Avionics Portable Equipment Audio-Signal Routing Networking ________________Ordering Information PART MAX4536CPE MAX4536CSE MAX4536CEE MAX4536C/D MAX4536EPE TEMP. RANGE 0°C to +70°C 0°C to +70°C 0°C to +70°C 0°C to +70°C -40°C t

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MAX4536, MAX. Please refer to the document for exact specifications by model.

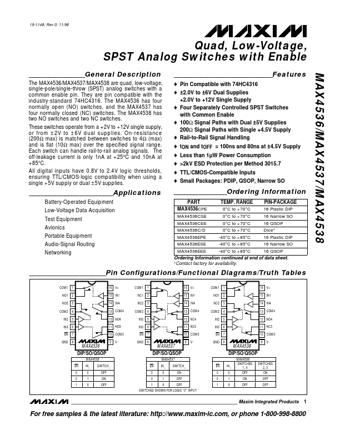

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MAX4536, MAX
Manufacturer
Maxim
File Size
118.89 KB
Datasheet
MAX-4536.pdf
Description
Quad / Low-Voltage / SPST Analog Switches with Enable
Note
This datasheet PDF includes multiple part numbers: MAX4536, MAX.
Please refer to the document for exact specifications by model.
