MAX726 - 5V/3.3V/3V 5A Step-Down / PWM / Switch-Mode DC-DC Regulators

Maxim

The MAX726 by Maxim is a 5V/3.3V/3V 5A Step-Down / PWM / Switch-Mode DC-DC Regulators. Below is the official datasheet preview.

Datasheet Details

Part number	MAX726
Manufacturer	Maxim
File Size	39.97 KB
Description	5V/3.3V/3V 5A Step-Down / PWM / Switch-Mode DC-DC Regulators
Datasheet	MAX726_MaximIntegratedProducts.pdf

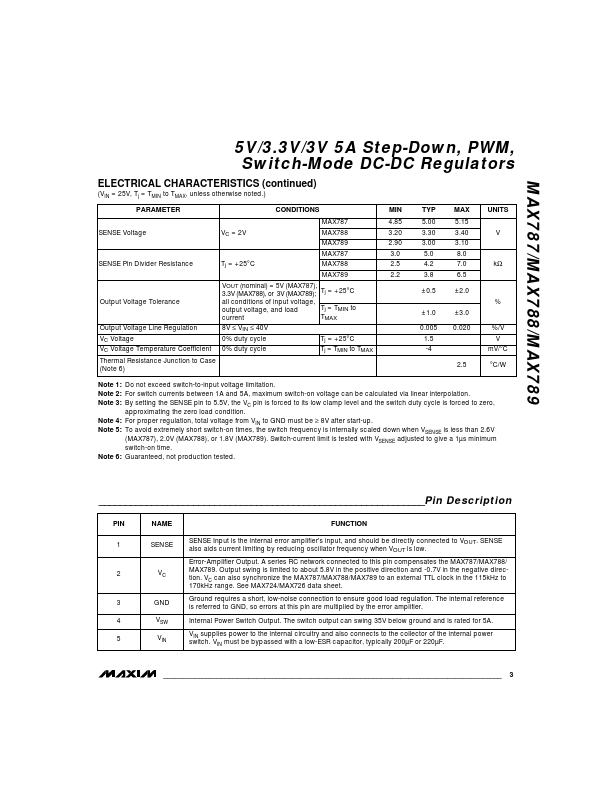

Additional preview pages of the MAX726 datasheet.

The MAX787/MAX788/MAX789 are monolithic, bipolar, pulse-width modulation (PWM), switch-mode, step-down DC-DC regulators.

o Input Range: Up to 40V o 5A On-Chip Power Switch o Fixed Outputs: 5V (MAX787) 3.3V (MAX788) 3V (MAX789) o 100kHz Switching Frequency o Excellent Dynamic Characteristics o Few External Components o 8.5mA Quiescent Current o TO-220 Package MAX787/MAX788/MAX789 ______________Ordering Information PART MAX787CCK MAX787ECK MAX788CCK MAX788ECK MAX789CCK MAX789ECK TEMP. RANGE 0°C to +70°C -40°C to +85°C 0°C to +70°C -40°C to +85°C 0°C to +70°C -40°C to +85°C PIN-.
