MAX9152 Datasheet - Maxim

800Mbps LVDS/LVPECL-to-LVDS 2 x 2 Crosspoint Switch

MAX9152 Features

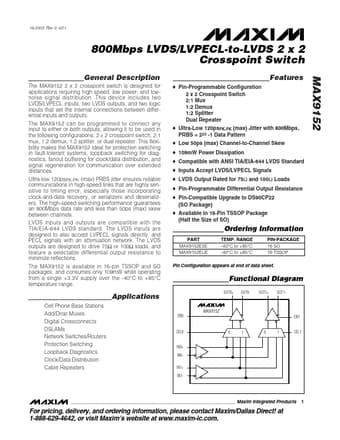

* MAX9152 Ordering Information PART MAX9152ESE MAX9152EUE TEMP. RANGE -40°C to +85°C -40°C to +85°C PIN-PACKAGE 16 SO 16 TSSOP Pin Configuration appears at end of data sheet. Functional Diagram OUT0+ OUT0OUT1+ OUT1- Applications Cell Phone Base Stations Add/Drop Muxes Digital Crossconnects DSLAMs

MAX9152 General Description

The MAX9152 2 x 2 crosspoint switch is designed for applications requiring high speed, low power, and lownoise signal distribution. This device includes two LVDS/LVPECL inputs, two LVDS outputs, and two logic inputs that set the internal connections between differential inputs and outputs. The MAX91.
