MAX9156 - Low-Jitter / Low-Noise LVPECL-to-LVDS Level Translator

MAX9156 Description

19-2216; Rev 0; 10/01 Low-Jitter, Low-Noise LVPECL-to-LVDS Level Translator in an SC70 Package General .
The MAX9156 is an LVPECL-to-LVDS level translator that accepts a single LVPECL input and translates it to a single LVDS output.

MAX9156 Applications

* Digital Cross-Connects Add/Drop Muxes Network Switches/Routers Cellular Phone Base Stations DSLAMs Multidrop Buses PART MAX9156EXT-T Ordering Information TEMP. RANGE -40°C to +85°C PINPACKAGE 6 SC70-6 TOP MARK ABD Pin Configuration Typical Operating Circuit VCC 3.3V MAX9156 OUT+ IN+ LVPECL DRIVER

📥 Download Datasheet

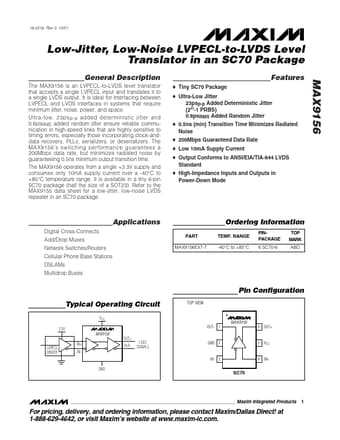

Preview of MAX9156 PDF
