MAX9153, 10-Port LVDS Repeaters

19-2167; Rev 0; 10/01 KIT ATION EVALU E L B A AVAIL Low-Jitter, 800Mbps, 10-Port LVDS Repeaters with 100Ω Drive General .
Features o Ultra-Low 90psp-p (max) Added Deterministic Jitter at 800Mbps (223-1) PRBS Pattern o 1psRMS (max) Added Random Jitter o 60ps (max) Skew Bet.

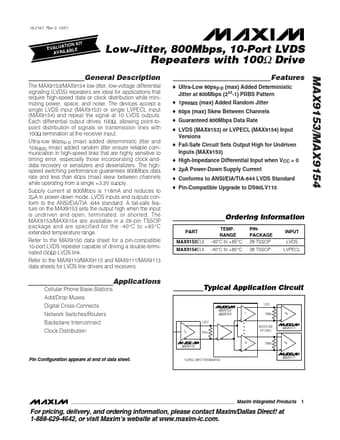

datasheet Preview Page 1 from Datasheet4u.com

MAX9153_MaximIntegratedProducts.pdf

MAX9153 Datasheet Preview — Preview of MAX9153 PDF

Datasheet Details

Part number:

MAX9153

Manufacturer:

Maxim

File Size:

208.59 KB

Description:

10-Port LVDS Repeaters

Features

* o Ultra-Low 90psp-p (max) Added Deterministic Jitter at 800Mbps (223-1) PRBS Pattern o 1psRMS (max) Added Random Jitter o 60ps (max) Skew Between Channels o Guaranteed 800Mbps Data Rate o LVDS (MAX9153) or LVPECL (MAX9154) Input Versions o Fail-Safe Circuit Sets Output High for Undriven Inputs (MAX9

Applications

* that require high-speed data or clock distribution while minimizing power, space, and noise. The devices accept a single LVDS input (MAX9153) or single LVPECL input (MAX9154) and repeat the signal at 10 LVDS outputs. Each differential output drives 100Ω, allowing point-topoint distribution of signal
