MW565050, Surface-Mount Molded Wound Chip Inductors

Surface-Mount Molded Wound Chip Inductors Meisongbei .

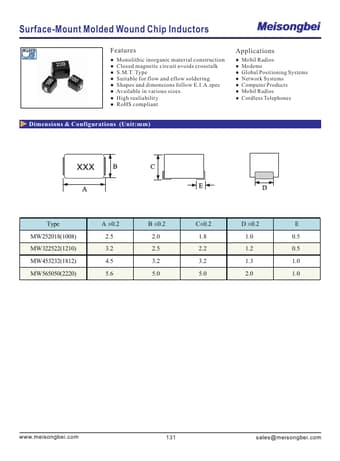

datasheet Preview Page 1 from Datasheet4u.com

MW565050-Meisongbei.pdf

MW565050 Datasheet Preview — Preview of MW565050 PDF

Datasheet Details

Part number:

MW565050

Manufacturer:

Meisongbei

File Size:

77.59 KB

Description:

Surface-Mount Molded Wound Chip Inductors

Features

* Monolithic inorganic material construction
* Closed magnetic circuit avoids crosstalk
* S. M. T. Type
* Suitable for flow and eflow soldering.
* Shapes and dimensions follow E. I. A. spec
* Available in various sizes.
* High realiability

Applications

* Mobil Radios
* Modems
* Global Positioning Systems
* Network Systems
* Computer Products
* Mobil Radios
* Cordless Telephones Dimensions & Configurations (Unit:mm) Type A ±0.2 B ±0.2 C±0.2 D ±0.2 E MW252018(1008) 2.5 2.0 1.8 1.0 0.5 MW322522(1210) 3.2 2.
