MW5IC2030GMBR1 Datasheet - Motorola

MW5IC2030GMBR1 RF LDMOS Wideband Integrated Power Amplifiers

1.8 pF High Q Chip Capacitor (0603) 1.5 pF High Q Chip Capacitor (0603) 3.9 pF High Q Chip Capacitor (0603) 6.8 pF High Q Chip Capacitor (0805) 100 pF Class 1 NPO Chip Capacitors (0805) 4.7 pF Class 1 NPO Chip Capacitor (0805) 0.1 µF X7R Chip Capacitors (1206) 0.01 µF Class 2 X7R Chip Capacitors (08.

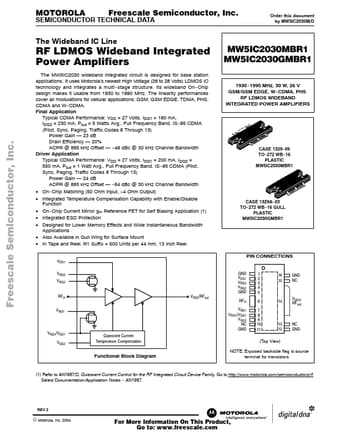

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Freescale Semiconductor, Inc. www.DataSheet4U.com Order this document by MW5IC2030M/D The Wideband IC Line RF LDMOS Wideband Integrated Power Amplifiers The MW5IC2030 wideband integrated circuit is designed for base station applications. It uses Motorola’s newest High Voltage (26 to 28 Volts) LDMOS IC technology and integrates a multi - stage structure. Its wideband On - Chip design makes it usable from 1930 to 1990 MHz. The linearity performances cove.

MW5IC2030GMBR1 Features

* Go to: www.freescale.com Freescale Semiconductor, Inc. TYPICAL CHARACTERISTICS

* 15 IMD, INTERMODULATION DISTORTION (dBc)

* 20

* 25

* 30

* 35

* 40

* 45

* 50

* 55

* 60 0.1 1 10 100 TWO

* TONE SPACING (MHz) 7th Order 3rd Orde

MW5IC2030GMBR1_Motorola.pdf

MW5IC2030GMBR1 Datasheet Preview — Preview of MW5IC2030GMBR1 PDF

Datasheet Details

Part number:

MW5IC2030GMBR1

Manufacturer:

Motorola

File Size:

652.42 KB

Description:

Rf ldmos wideband integrated power amplifiers.
