10939P Datasheet - Micrel Semiconductor

MIC10939P

10939P Features

* 20-character display driver cascadable to 80 characters Standard 5 × 12 character font Separate cursor driver output Two 128 × 23 PLAs provides segment decoding for full 96-character ASCII set, plus 32 special characters

10939P General Description

The MIC10939, MIC10942, and MIC10943 Dot Matrix Display Controller is a three-chip MOS/LSI general purpose display controller system designed to interface to dot matrix displays (vacuum fluorescent or LED). The three-chip set will drive displays with up to 46 anodes (dots) and up to 20 grids (charac.

10939P Datasheet (48.30 KB)

Preview of 10939P PDF

Datasheet Details

Part number:

10939P

Manufacturer:

Micrel Semiconductor

File Size:

48.30 KB

Description:

mic10939p.

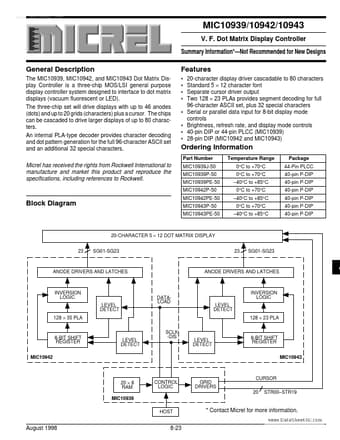

MIC10939/10942/10943 www.DataSheet4U.com Micrel MIC10939/10942/10943 V. F. Dot Matrix Display Controller Summary Information Not Recomm.
