10938

Dot Matrix Display Controller

10938 Features

* 20-character display driver cascadable to 80

* Standard 5 x 7 character font.

* Separate cursor driver output

* Direct drive capability for vacuum-fluorescent display

10938 General Description

The Rockwell 10938 and 10939 Dot Matrix Display Controller is a two-chip MOS/LSI general purpose display controller system designed to interface to dot matrix displays (vacuum-fluorescent or LED). The two-chip set will drive displays with up to 35 anodes (dots) and up to 20 grids (characters) plus a.

10938 Datasheet (497.95 KB)

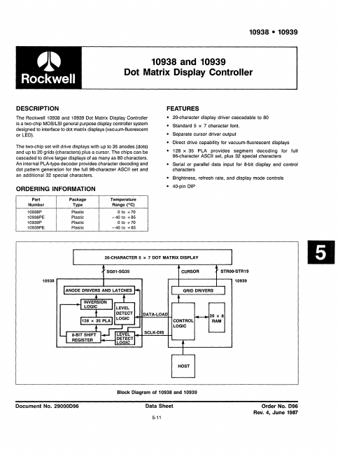

Preview of 10938 PDF

Datasheet Details

Part number:

10938

Manufacturer:

Rockwell

File Size:

497.95 KB

Description:

Dot matrix display controller.
