10921210, 10911210 Analog AMR/GMR Angle Sensors

10921210 Description

TLE5x09A16(D) Analog AMR/GMR Angle Sensors .
The TLE5x0916(D) are angle sensor with analog outputs.

10921210 Features

* Single and dual die sensor with AMR or GMR technology
* Separate supply pins for top and bottom sensor
* Low current consumption and quick start up
* 180°(AMR) and 360°(GMR) contactless angle measurement
* Output amplitude optimized for circuits with 3.3 V o

10921210 Applications

* Diverse redundance combination of GMR sensor and AMR sensor in one package possible
* High accuracy typically 0.1° overall angle error for AMR sensor
* Green product (RoHS compliant) Functional Safety Safety Manual and Safety Analysis Summary Report available on request.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 10921210, 10911210. Please refer to the document for exact specifications by model.

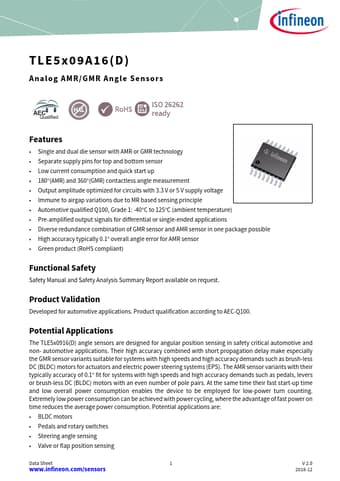

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
10921210, 10911210
Manufacturer
Infineon ↗
File Size
1.13 MB
Datasheet
10911210-Infineon.pdf
Description
Analog AMR/GMR Angle Sensors
Note
This datasheet PDF includes multiple part numbers: 10921210, 10911210.
Please refer to the document for exact specifications by model.
