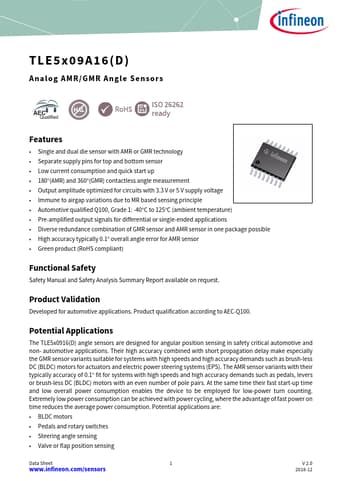

10911210 Analog AMR/GMR Angle Sensors

The TLE5x0916(D) are angle sensor with analog outputs. They detect the orientation of a magnetic field by measuring sine and cosine angle components with Magneto Resistive (MR) elements. The sensors provide analog sine and cosine output voltages that describe the magnetic angle in a range of 0 to 18.

10911210 Features

* Single and dual die sensor with AMR or GMR technology

* Separate supply pins for top and bottom sensor

* Low current consumption and quick start up

* 180°(AMR) and 360°(GMR) contactless angle measurement

* Output amplitude optimized for circuits with 3.3 V o
