MIC10937 - V. F. Alphanumeric Display Controller

Product Overview

Micrel Semiconductor

Datasheet Details

Part number	MIC10937
Manufacturer	Micrel Semiconductor
File Size	365.43 KB
Description	V. F. Alphanumeric Display Controller
Datasheet	MIC10937 Datasheet

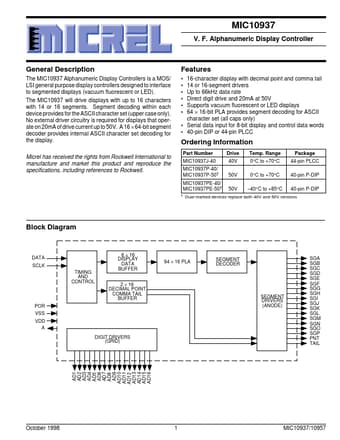

Additional preview pages of the MIC10937 datasheet.

Product details

Description

The MIC10937 Alphanumeric Display Controllers is a MOS/ LSI general purpose display controllers designed to interface to segmented displays (vacuum fluorescent or LED).

Features

16-character display with decimal point and comma tail 14 or 16-segment drivers Up to 66kHz data rate Direct digit drive and 20mA at 50V Supports vacuum fluorescent or LED displays 64 × 16-bit PLA provides segment decoding for ASCII character set (all caps only).
Serial data input for 8-bit display and control data words.
40-pin DIP or 44-pin PLCC Ordering Information Part Number MIC10937J-40 MIC10937P-40/ MIC10937P-5.
