MIC94044 Datasheet - Micrel Semiconductor

MIC94044 3A High Side Load Switch

The MIC94044 and MIC94045 are high-side load switches designed to operate from 1.7V to 5.5V input voltage. The load switch pass element is an internal 28mΩ RDSON P-channel MOSFET which enables the device to support up to 3A of continuous current. Additionally, the load switch supports 1.5V logic lev.

MIC94044 Features

* in a tiny 1.2mm x 1.2mm 4 pin MLF® package. The MIC94044/5 provides a slew rate controlled soft-start turn-on of 1ms (typical) to prevent an in-rush current event from pulling down the input supply voltage. The MIC94045 features an active load discharge circuit which switches in a 200Ω load when the

MIC94044 Datasheet (422.04 KB)

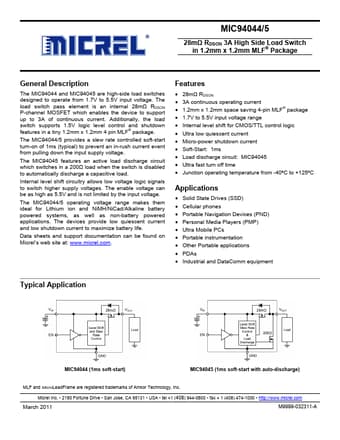

Preview of MIC94044 PDF

Datasheet Details

Part number:

MIC94044

Manufacturer:

Micrel Semiconductor

File Size:

422.04 KB

Description:

3a high side load switch.
