MIC94043

(MIC94040 - MIC94043) RDSON 3A High Side Load Switch

Micrel Semiconductor

MIC94043 Features

* in a tiny 1.2mm x ® 1.2mm 4 pin MLF package. The MIC94040 and MIC94041 feature rapid turn on, while the MIC94042 and MIC94043 provide a slew rate controlled softstart turn-on of 100µs. The soft-start feature is provided to prevent an in-rush current event from pulling down the input supply voltage.

MIC94043 General Description

The MIC94040/1/2/3 is a family of high-side load switches designed to operate from 1.7V to 5.5V input voltage. The load switch pass element is an internal 28mΩ RDSON P-channel MOSFET which enables the device to support up to 3A of continuous current. Additionally, the load switch supports 1.5V logic.

MIC94043 Datasheet (1.47 MB)

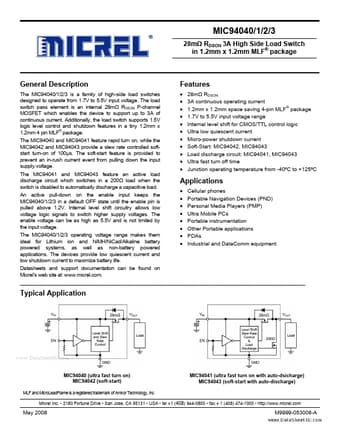

MIC94043 Datasheet Preview — Preview of MIC94043 PDF

Datasheet Details

Part number:

MIC94043

Manufacturer:

Micrel Semiconductor

File Size:

1.47 MB

Description:

(mic94040 - mic94043) rdson 3a high side load switch.
