MIC94045

3A High Side Load Switch

MIC94045 Features

* in a tiny 1.2mm x 1.2mm 4 pin MLF® package. The MIC94044/5 provides a slew rate controlled soft-start turn-on of 1ms (typical) to prevent an in-rush current event from pulling down the input supply voltage. The MIC94045 features an active load discharge circuit which switches in a 200Ω load when the

MIC94045 General Description

The MIC94044 and MIC94045 are high-side load switches designed to operate from 1.7V to 5.5V input voltage. The load switch pass element is an internal 28mΩ RDSON P-channel MOSFET which enables the device to support up to 3A of continuous current. Additionally, the load switch supports 1.5V logic lev.

MIC94045 Datasheet (422.04 KB)

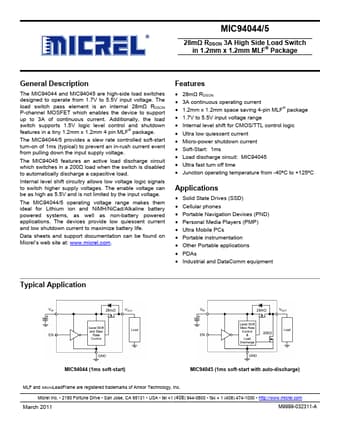

Preview of MIC94045 PDF

Datasheet Details

Part number:

MIC94045

Manufacturer:

Micrel Semiconductor

File Size:

422.04 KB

Description:

3a high side load switch.
