MIC94041, MIC94040 Datasheet - Micrel Semiconductor

MIC94041 (MIC94040 - MIC94043) RDSON 3A High Side Load Switch

The MIC94040/1/2/3 is a family of high-side load switches designed to operate from 1.7V to 5.5V input voltage. The load switch pass element is an internal 28mΩ RDSON P-channel MOSFET which enables the device to support up to 3A of continuous current. Additionally, the load switch supports 1.5V logic.

MIC94041 Features

* in a tiny 1.2mm x ® 1.2mm 4 pin MLF package. The MIC94040 and MIC94041 feature rapid turn on, while the MIC94042 and MIC94043 provide a slew rate controlled softstart turn-on of 100µs. The soft-start feature is provided to prevent an in-rush current event from pulling down the input supply voltage.

MIC94040_MicrelSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MIC94041, MIC94040. Please refer to the document for exact specifications by model.

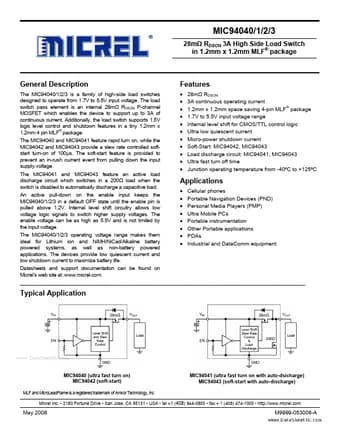

MIC94041 Datasheet Preview Page 2 MIC94041 Datasheet Preview Page 3

Datasheet Details

Part number:

MIC94041, MIC94040

Manufacturer:

Micrel Semiconductor

File Size:

1.47 MB

Description:

(mic94040 - mic94043) rdson 3a high side load switch.

Note:

This datasheet PDF includes multiple part numbers: MIC94041, MIC94040.
Please refer to the document for exact specifications by model.
