MX573ABA212M500 Datasheet - Micrel Semiconductor

MX573ABA212M500 Ultra-low Jitter 212.5MHz LVPECL XO

The MX573ABA212M500 is an ultra-low phase jitter XO with LVPECL output optimized for high line rate applications. Applications * Fibre Channel 10G/12G SERDES Absolute Maximum Ratings Supply Voltage (VIN)+3.6V Lead Temperature (soldering, 10s)260°C Storage Temperature (TS)125°C ESD Rating (HB.

MX573ABA212M500 Features

* 212.5MHz LVPECL

* Typical phase noise: -80fs (Integration range: 1.875MHz-20MHz)

* ±50ppm total frequency stability

* -40°C to +85°C temperature range

* Industry standard 6-Pin 7mm x 5mm LGA package Operating Ratings Supply Voltage (VIN)+2.375V to +3.63V Amb

MX573ABA212M500-MicrelSemiconductor.pdf

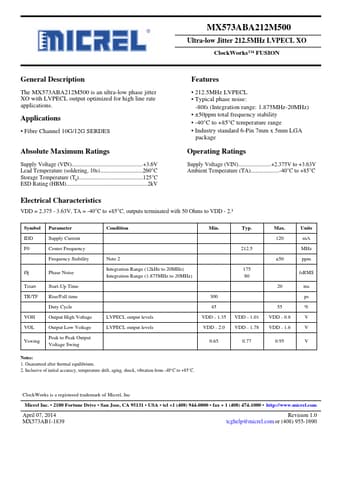

Preview of MX573ABA212M500 PDF
MX573ABA212M500 Datasheet Preview Page 2 MX573ABA212M500 Datasheet Preview Page 3

Datasheet Details

Part number:

MX573ABA212M500

Manufacturer:

Micrel Semiconductor

File Size:

670.06 KB

Description:

Ultra-low jitter 212.5mhz lvpecl xo.
