MX573BBB156M250

Ultra-low Jitter 156.25MHz LVDS XO

MX573BBB156M250 Features

* 156.25MHz LVDS

* Typical phase noise: -80fs (Integration range: 1.875MHz-20MHz)

* ±50ppm total frequency stability

* -40°C to +85°C temperature range

* Industry standard 6-Pin 7mm x 5mm LGA package Operating Ratings Supply Voltage (VIN)+2.375V to +3.63V Ambi

MX573BBB156M250 General Description

The MX573BBB156M250 is an ultra-low phase jitter XO with LVDS output optimized for high line rate applications. Applications

* 10/40/400 Gigabit Ethernet

* Fibre Channel 10G/12G SERDES Absolute Maximum Ratings Supply Voltage (VIN)+3.6V Lead Temperature (soldering, 10s)260°C Storage T.

MX573BBB156M250 Datasheet (670.16 KB)

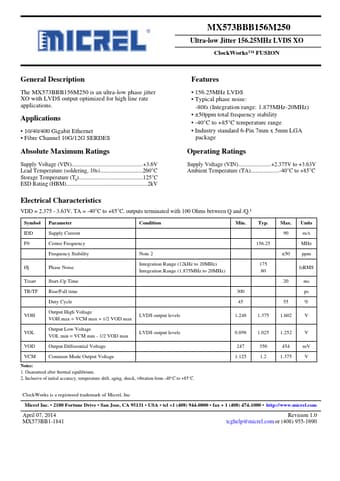

Preview of MX573BBB156M250 PDF

Datasheet Details

Part number:

MX573BBB156M250

Manufacturer:

Micrel Semiconductor

File Size:

670.16 KB

Description:

Ultra-low jitter 156.25mhz lvds xo.
